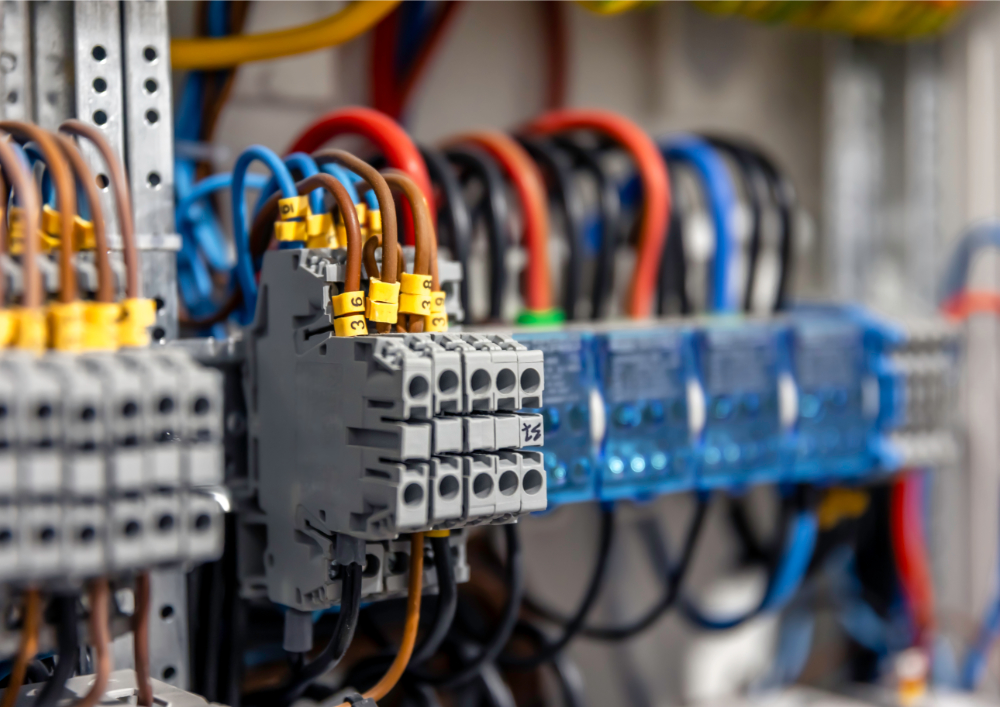

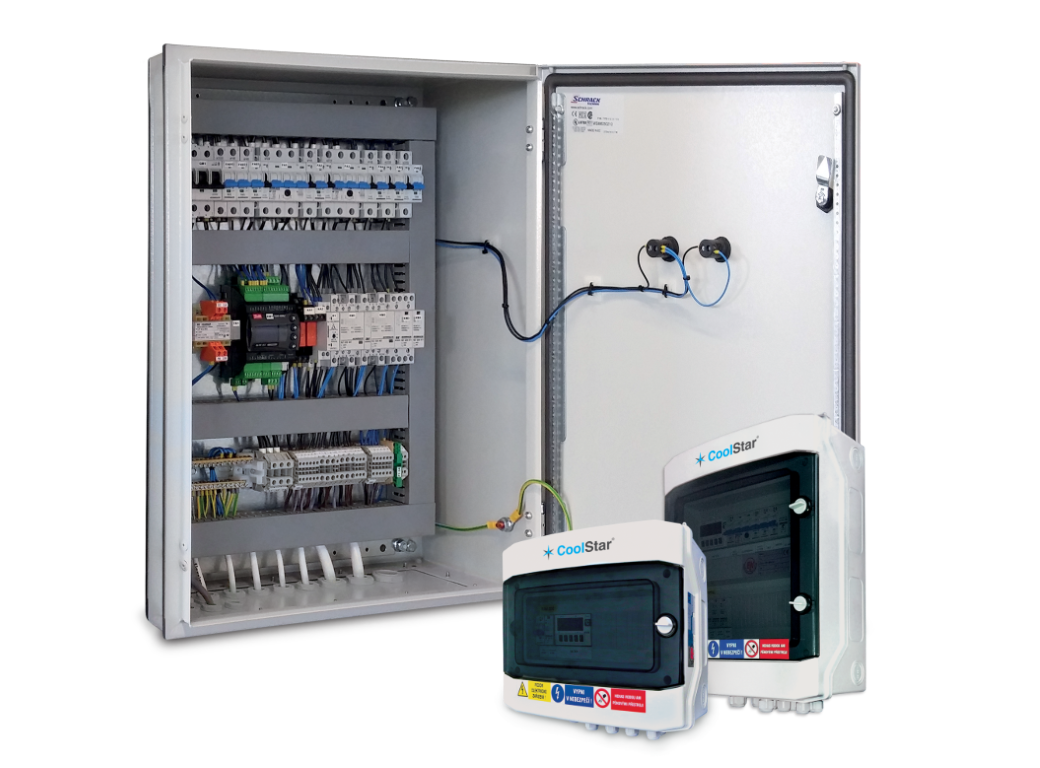

Řada Standard
Provedení: plastová skříň se stupněm krytí IP 65, v případě vyšších proudů plechová skříň se stupněm krytí IP 66.
Rozvaděče řady Standard obsahují elektronický regulátor Dixell nebo regulátory jiných výrobců dle požadavků zákazníka. Rozvaděče jsou osazeny jisticími a ovládacími prvky pro jednotlivé části chladicího okruhu.
Řada Economy
Provedení: plastová skříň se stupněm krytí IP 65.
Rozvaděče řady Economy obsahují elektronický regulátor Dixell a jištění přívodu, jsou vhodné pro většinu typových technologií s jednofázovými kompresory. Rozvaděče je také možné použít pro řízení výparníků u chladivových systémů s více odběrnými místy.

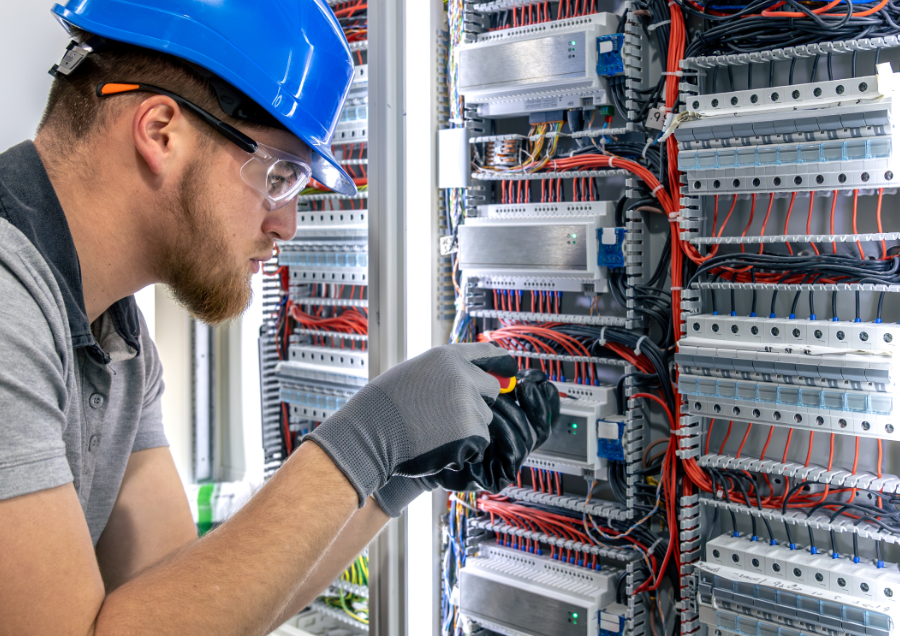

Atypické rozvaděče
Atypické rozvaděče jsou vybaveny nestandardními prvky,
např. pro:
- řízení digitálního kompresoru
- řízení více kompresorů
- řízení více ventilátorů kondenzátoru
- speciální rozběh kompresorů
- řízení kompresoru s plynulou změnou otáček
- hlídání výtlačné teploty
- hlídání hladiny oleje
- hlídání tlaku oleje
Standardní vybavení
Jisticí a / nebo ovládací prvky pro:
(v jednofázovém i třífázovém provedení od 2 do 160 a dle specifikace)
- kompresor
- ventilátory vzduchem chlazeného kondenzátoru
- ventilátory výparníku
- elektrické odtávání výparníku
- elektromagnetický ventil
- ohřev oleje kompresoru
- svorky pro připojení kombinovaného presostatu
- signálka a / nebo svorka ALARM
- teplotní čidlo prostoru
- teplotní čidlo výparníku
Volitelné vybavení
- regulace kondenzačního tlaku presostatem
- plynulá regulace kondenzačního tlaku
- hlídač sledu fází
- řízení odsávacího cyklu (pump-down)
- zvuková signalizace alarmu
- relé proti cyklování
